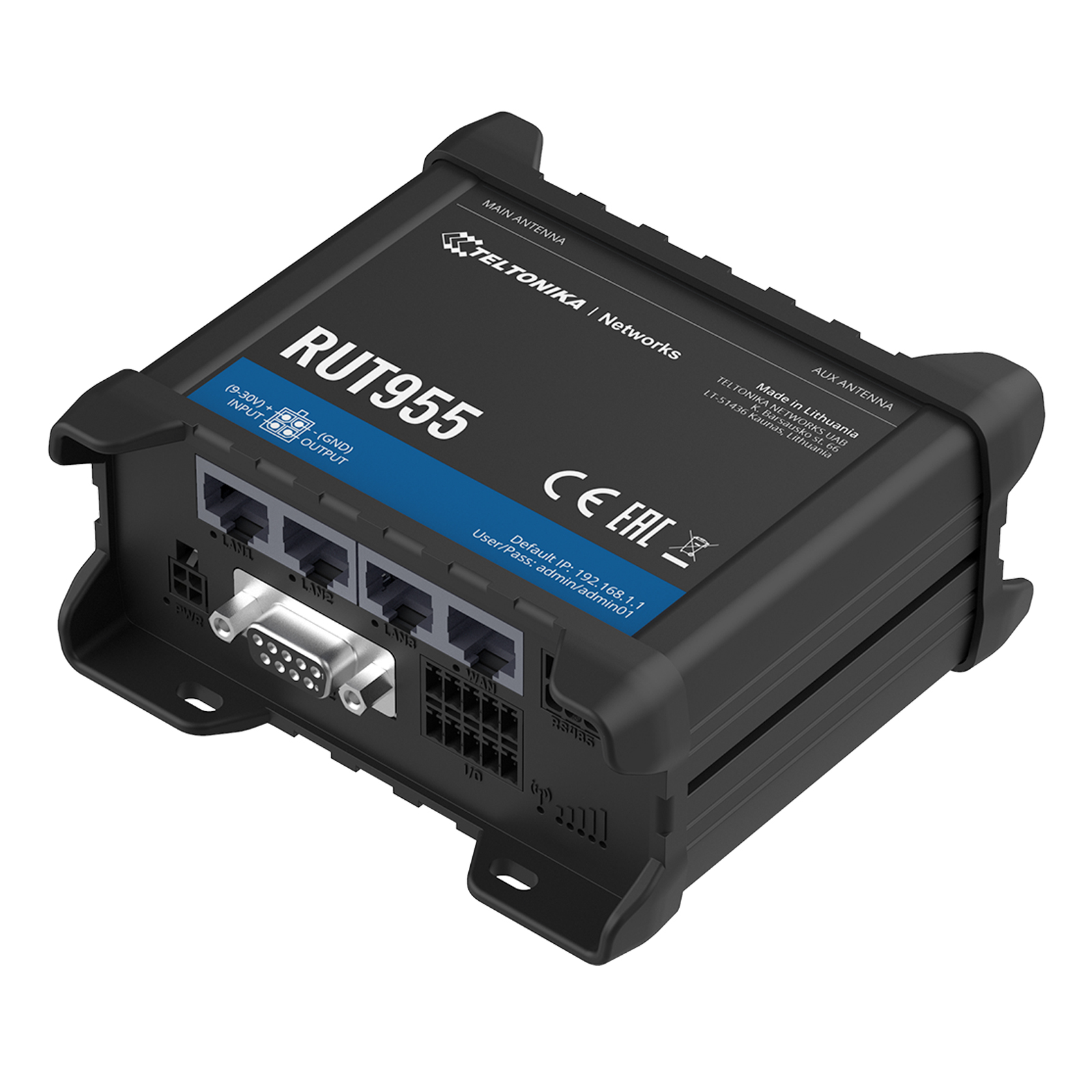

RUT955 offers a dual-SIM cellular connection, four Ethernet ports, and Wi-Fi combined with RS232, RS485, USB interfaces, and inputs/outputs for an incredible variety of professional application scenarios. This router comes with RutOS advanced software features such as Modbus, SNMP, TR-069, NTRIP, MQTT protocol support, and GNSS tracking capabilities.
Mobile
- Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
- SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
- Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
- SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- Black/White List Operator black/white list
- Band Managment Band lock, Used band status display
- APN Auto APN
- Bridge Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough Router assigns its mobile WAN IP address to another device on LAN
- Multiple PDN (optional) Possibility to use different PDNs for multiple network access and services (not available in standard FW)
Wireless
- Wireless Mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
- Wi-Fi Security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
- SSID SSID stealth mode and access control based on MAC address
- Wi-Fi Users Up to 100 simultaneous connections
- Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
Ethernet
- WAN 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
- LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Network
- Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
- Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall Port forward, traffic rules, custom rules
- DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
- QoS Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS Supported >25 service providers, others can be configured manually
- Load Balancing Balance your internet traffic over multiple WAN connections
