PTP 820C

All outdoor, dual core, up to 1.2 Gbps

Contact us

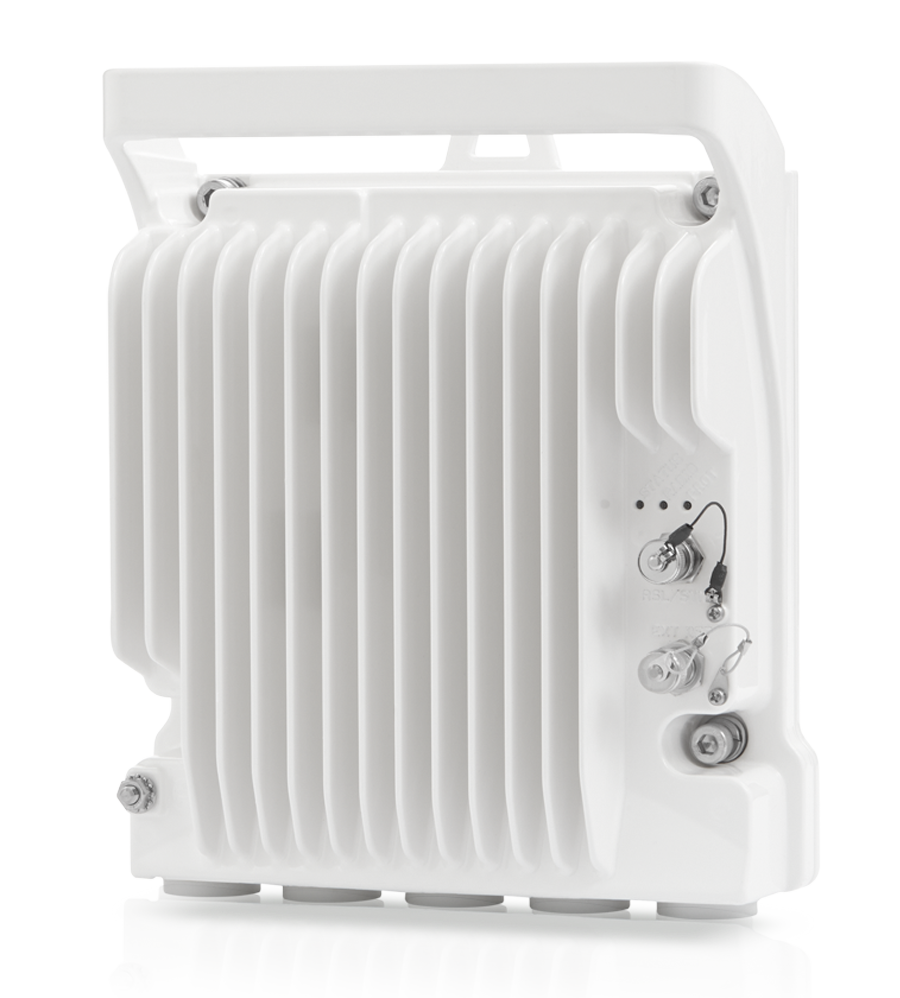

PTP 820C is an all-outdoor, multi-core unit. The PTP 820C has dual-core functionality enabling the system to operate up to 2 Gbps via software upgrades, eliminating the need for future forklift upgrades, or major system overhaul by the network operator to deliver gigabit-plus capacity.

  • Frequenza 6-38 GHz
  • 1+0 to 4+0, 1+1/2+2 HSB, E/W, 1+0 SD, 2+2 SD
  • Multi-Carrier Adaptive Bandwidth Control (up to 2+0)
  • QPSK to 2048 QAM w/ACM
  • 1+1/2+2 HSB
  • 1 x 10/100/1000Base-T (RJ-45) and 1x1000base-X (SFP) or 10/100/1000 Base-T (electrical SFP)

  • Dimensions 230mm(H), 233mm(W), 98mm(D), 6.5kg
  • Pole Diameter Range 8.89 cm – 11.43 cm
  • Temperatureo -33°C to +55°C (-45°C to +60°C extended)

Download Datasheet
