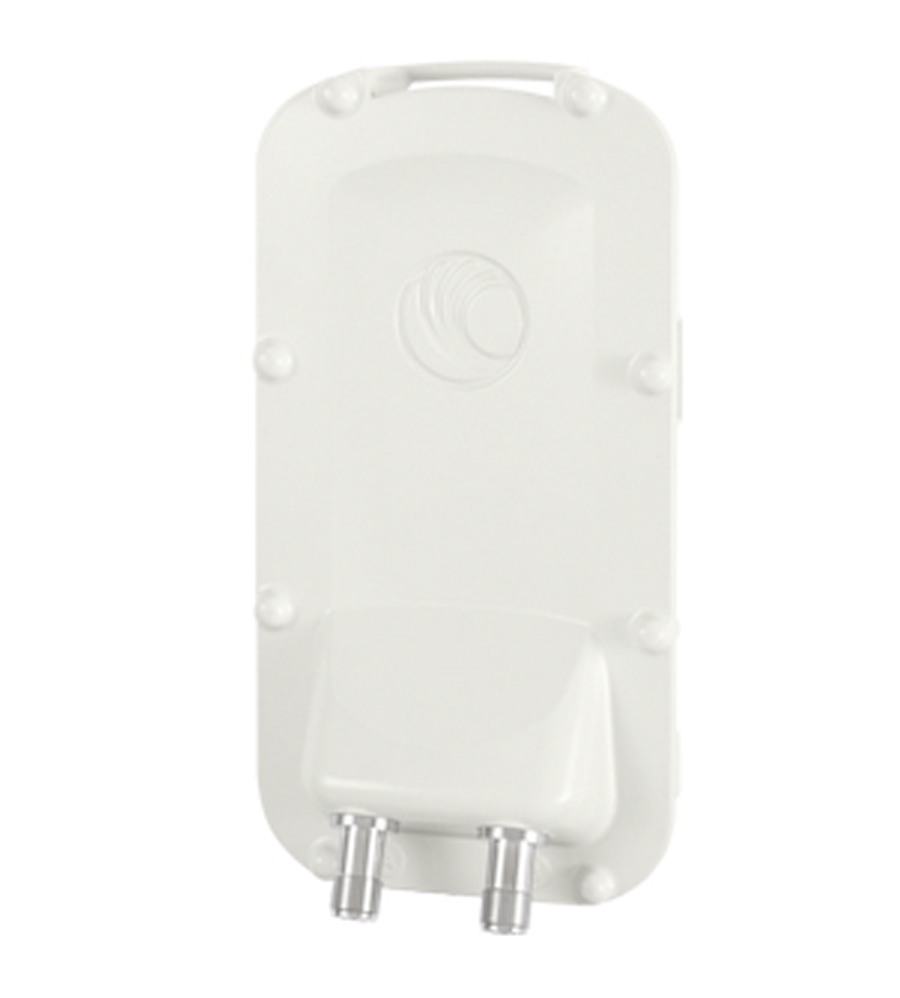

PMP 450i Fixed Wireless Subscriber Module

The ultra-wide band 450i features dynamic interference filtering, IP-66/67 enclosure, and multifunction AUX port. It is available as Subscriber Module, Backhaul or Access Point.

Contact us

Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available. Supports the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity. Designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments. Provides industryleading noise isolation for improved performance. Optimized for frequency re-use (>35 dB F/B), high gain, null fill andpredictable performance, or Integrated 10° sector antenna for highly directional sectors.

  • Frequency Range: 3 GHz: 3300 - 3900 MHz, 5 GHz: 4900 - 5925 MHz
  • Frequency Spacing: Configurable on 2.5 MHz increments, 3 GHz customizable to 50 KHz
  • Channel Width: 5, 7, 10, 15, 20, 30 and 40 MHz
  • 2 x 2 MIMO OFDM
  • Ethernet Interface: 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)

  • Dimensions 26.0 x 13.4 x 6.4 cm (Connectorized) 31.0 x 31.0 x 6.4 cm (Integrated)
  • IP66 IP67
  • Temperature -40°C to 60°C

Download Datasheet
