IC-F3002 / IC-F4002 Series

VHF/UHF Transceivers

Contact us

The IC-F3002 series is so easy to use there’s no special training required. The few knobs and buttons are generously sized for easy operation and are designed to provide non-slip, positive action – even while wearing gloves. The radio provides 1500 mW* loud and clear audio with Icom custom high power handling capacity speaker. Clear communication is available even in noisy environments. A new high efficiency FET of the IC-F3002 series reduces consumption current and provides up to 31 hours* of operating time with the BP-299, 3150 mAh (typical) supplied battery pack. While the radio is a compact unit with a height of only 111 mm, the radio is tested to dust protection and water resistant equivalent to IP54 and 11 categories of MILSTD- 810 environmental tests. In short, the IC-F3002 series is built rugged!

  • Frequency VHF (136 MHz–174 MHz) model IC-F3002
  • Frequency VHF (400 MHz–470 MHz) model IC-F4002
  • Dimension 58 × 111 × 35.5 mm (with BP-299)
  • Channel Capacity 16
  • Type of emission 8K50F3E/14K0F3E/16K0F3E
  • Frequency Spacing 12.5/20/25 kHz
  • RF output power 5 W, 2 W, 1 W (Hi, L2, L1)
  • Max. frequency deviation ± 5.0 kHz/±4.0 kHz/±2.5 kHz (Wide/Middle/Narrow)
  • Frequency stability ±2.5 ppm
  • Audio harmonic distortion 1.0%/1.0%/1.5% typical
  • Ext. microphone connector 3-conductor 2.5 (d) mm (1/10″)/2.2 kΩ)

  • DTMF autodial
  • CTCSS/DTCS encoder/decoder
  • BIIS PTT ID transmission
  • MDC PTT ID and emergency
  • Low battery alert
  • 2-step power save
  • PC programmable
  • Time out timer
  • Talk around function
  • Lone worker function
  • Enhanced emergency
  • 3-color LED
  • Surveillance function

IC-F3002 / IC-F4002 Series includes:

Telestar System Telecommunications Rome (Italy) Portable Radios ICOM IC-F3002

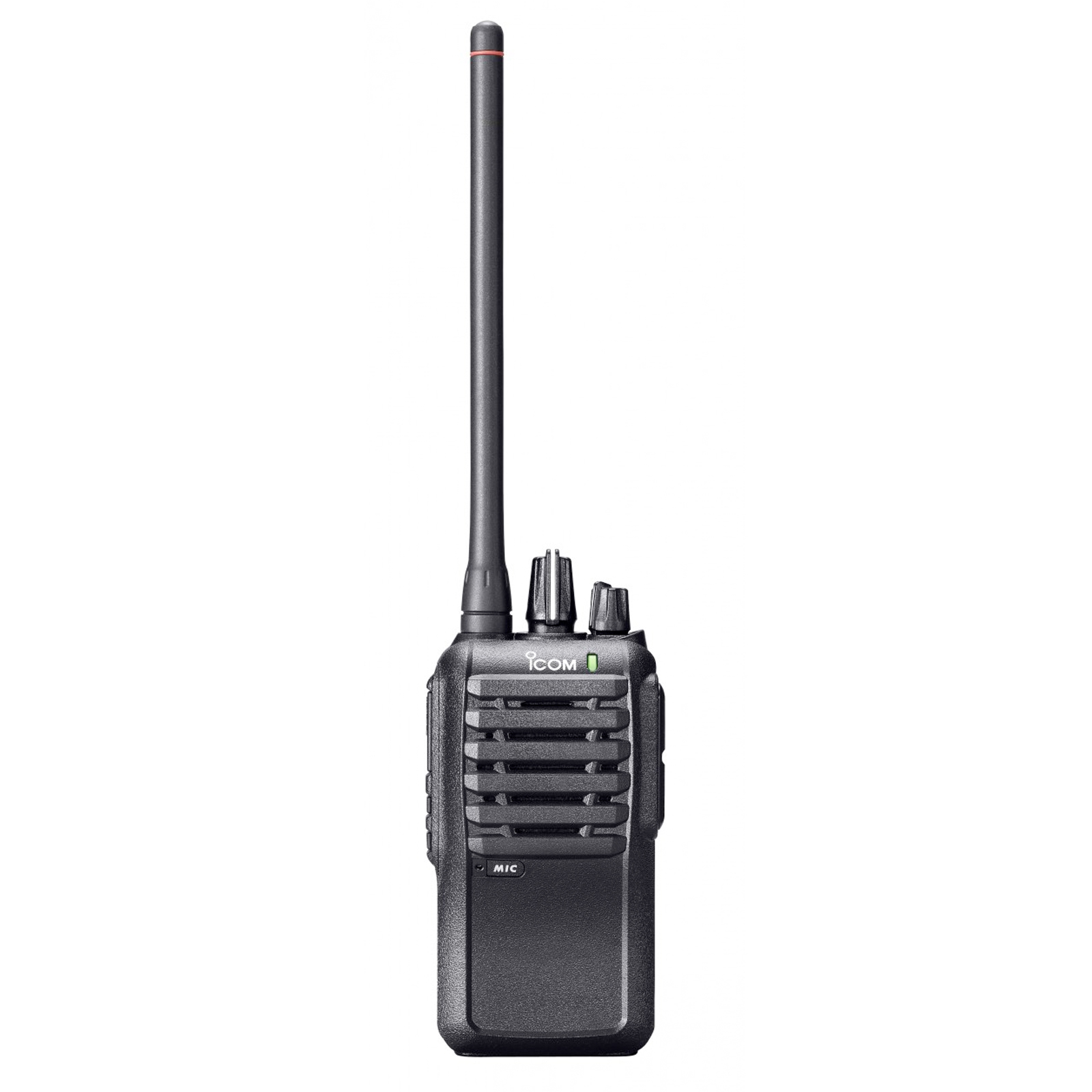

IC-F3002

VHF radio without display and keypad

Telestar System Telecommunications Rome (Italy) Portable Radios ICOM IC-F4002

IC-F4002

UHF radio without display and keypad
