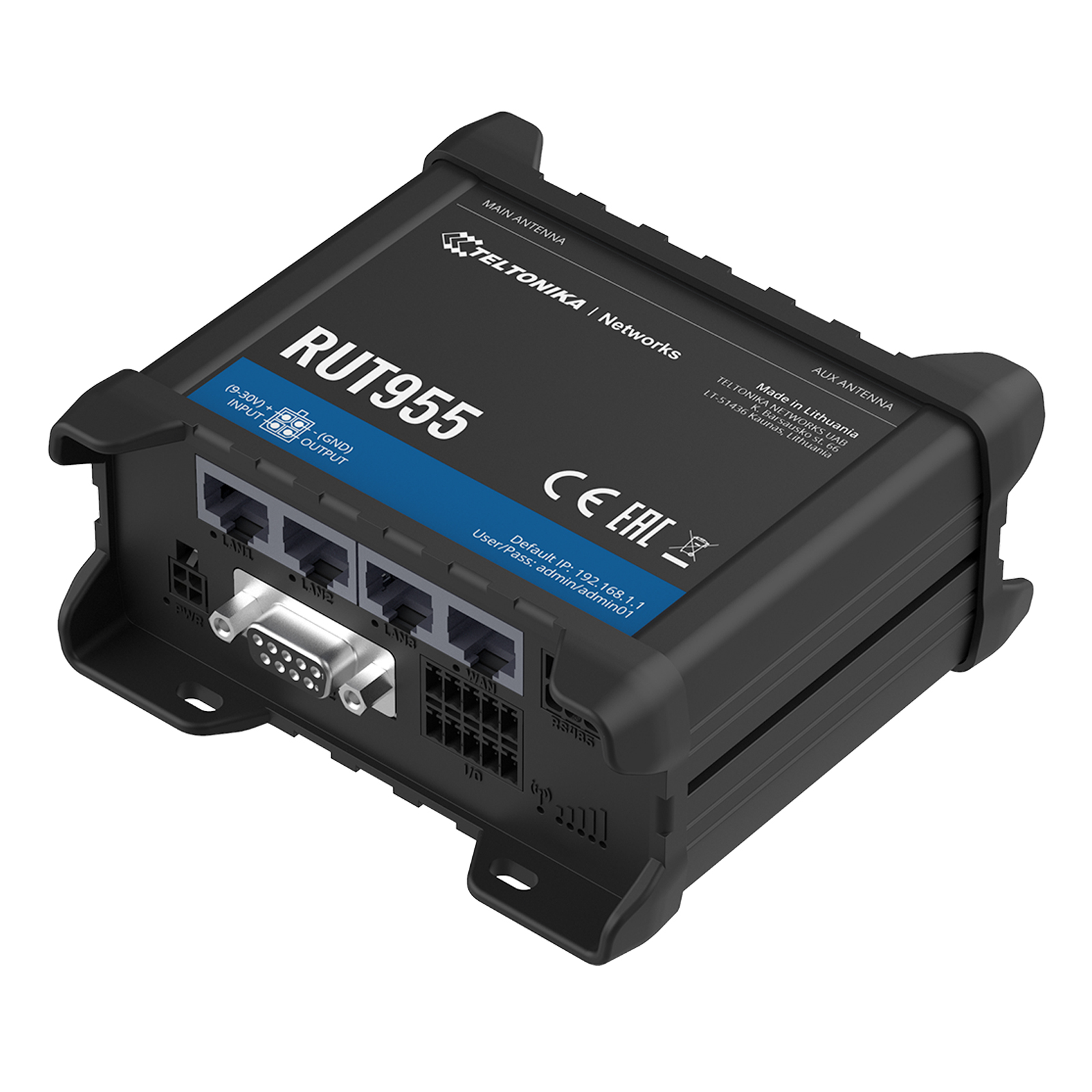

TELTONIKA RUT955

Router Cellulare industriale

Contatta Telestar System

RUT955 è un router LTE Cat 4 industriale altamente affidabile che offre elevate prestazioni e capacità di localizzazione GNSS. Le interfacce Ethernet, I / O digitali e analogiche, RS232, RS485, GNSS (GPS), microSD e USB consentono un'incredibile varietà di scenari di applicazioni industriali. È dotato di ridondanza della connettività tramite failover Dual SIM. Viene fornito con RutOS, ricco di funzionalità software avanzate, come Modbus, SNMP, TR-069, NTRIP, MQTT e più servizi VPN.

Mobile

  • Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
  • SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
  • Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
  • SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
  • Black/White List Operator black/white list
  • Band Managment Band lock, Used band status display
  • APN Auto APN
  • Bridge Direct connection (bridge) between mobile ISP and device on LAN
  • Passthrough Router assigns its mobile WAN IP address to another device on LAN
  • Multiple PDN (optional) Possibility to use different PDNs for multiple network access and services (not available in standard FW)

Wireless

  • Wireless Mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
  • Wi-Fi Security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
  • SSID SSID stealth mode and access control based on MAC address
  • Wi-Fi Users Up to 100 simultaneous connections
  • Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

Ethernet

  • WAN 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
  • LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

  • Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
  • Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT, Wake On Lan (WOL)
  • VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • Firewall Port forward, traffic rules, custom rules
  • DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
  • QoS Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
  • DDNS Supported >25 service providers, others can be configured manually
  • Load Balancing Balance your internet traffic over multiple WAN connections
